Fuji machine works metal forming equipment and machines
CNC Controlled Processing

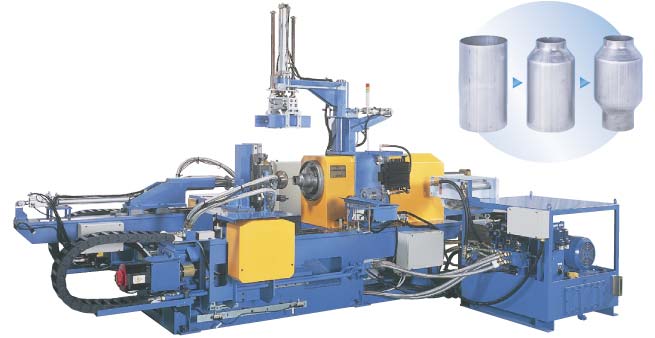

Spinning Machine
Spinning Machine
Spinning, End cutting, Chambering - any combination is possible in a single cycle!
Servo driven one and two roller model Spinners process the work as it is revolves at high speed, allowing for smooth finish and the most difficult contours. These Spinners allow for the fast forming of workpieces without welding and other waste. Quick tooling changes permit various sized workpieces on a single machine. Models available to handle up to 4 axis machines provide for even the most sophisticated processing.
Order Made Design allows the processing from the simplest to the most sophisticated shapes that your needs require.
Automated Loading and Unloading, as well as robotic features are also available for high production environments.
Ask us about our Tunnel Plasma Welding Equipment which gives you the ability to economically form rolled contours from coil or blank material in-house. This welding process is designed to create pipe that is suited to complement CNC Spinning.

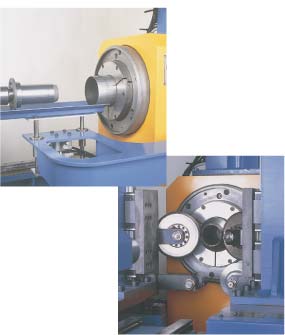

Load pipe into
the machine

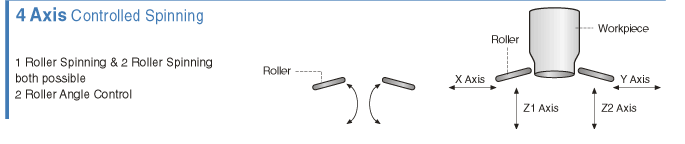

4 Axis Spinning
(Side View)
  End Cutting
Process
  Champhering   Spinning
Completed

Put the cursor over any of the photos above
